SL/EC Product Line 1.Mixing reactor: It’s a jacketed stainless steel mixture reactor, the main equipment for the SL/EC processing, with low speed mixer, motor, speed changer on it. The mixer paddle usual made into anchor and mixing speed is 65rpm. 2.Filter: bag filter, SS material ...
SL/EC Product Line
  • Suitable for middle-scale or large-scale production. Designing yearly output is 10000-100000Ton.
  • Provding different equipment configuration according to different production requirements.Each system is optional.

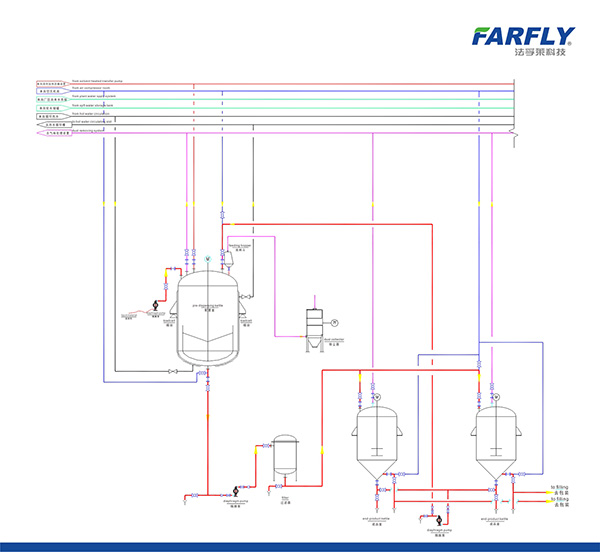

  • Main system
(1) Main processing equipment
  1. 1.Mixing reactor: It’s a jacketed stainless steel mixture reactor, the main equipment for the SL/EC processing, with low speed mixer, motor, speed changer on it. The mixer paddle usual made into anchor and mixing speed is 65rpm.
  2. 2.Filter: bag filter, SS material
  3. 3.Storage tank: Low speed mixer with anchor paddle, mixing speed is 82rpm and normally has two tanks alternate use, stainless steel material.
  4. 4.Filling line: As customer’s need, automatic and semi-automatic can be chosen

(2) Auxiliary equipment
  1. 1.Material measure system(material tank, feeding engine, weighing unit, dust removing system, detecting system).
  2. 2.Vacuum system(vacuum pump, vacuum buffer)
  3. 3.Compressed air system(air compressor, pressure release valve)
  4. 4.Water treatment system(automatic water treatment)
  5. 5.Automation management system
    (PLC, human-computer interface, computer, sensor, meter)
  6. 6.Pipeline system(pipe, pump,valve, flange,joint etc)
  7. 7.Cooling water system (ice maker)
